Wireforming

Wire forming is a core competency of G3 Industries back to 1973!   In 2016 Wire forming continues to be a workhorse of the G3 organization thru automation, team work and efficiency!

  • Our (5) CNC auto benders gives us a big sweet spot in working with .062” thru .629” wire.

    • In the range of .120 / .460 diameter wire, we ad automation in-line with an ATH unit to chamfer, turn and thread single ended formed parts with a maximum thread length of 4".

    • A key to your cost savings opportunity came when G3 added a 5/8” diameter CNC auto bender.  This allows G3 to process this larger diameter wire from coil.  This is not only a lot faster processing time, but it eliminates setting up presses for secondary bending operations and also eliminating the tooling expense to bend/form the wire in those presses.

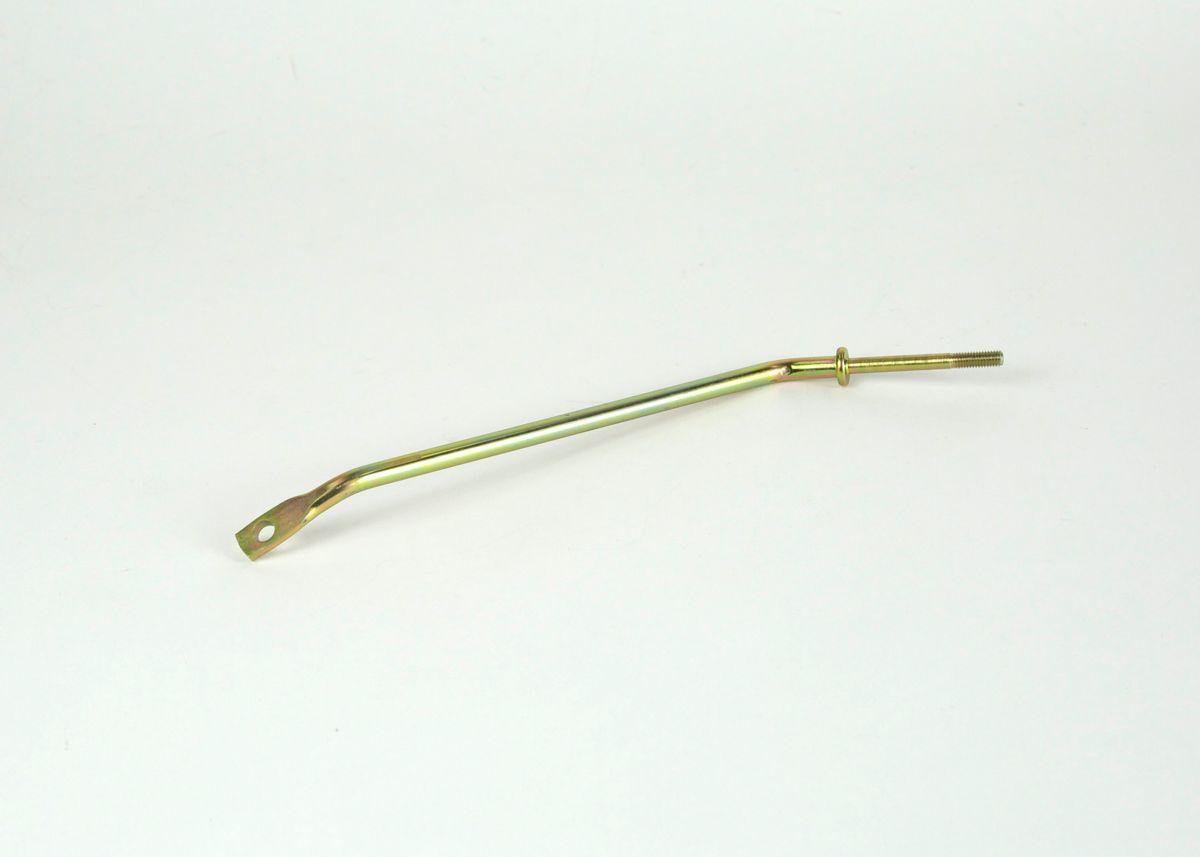

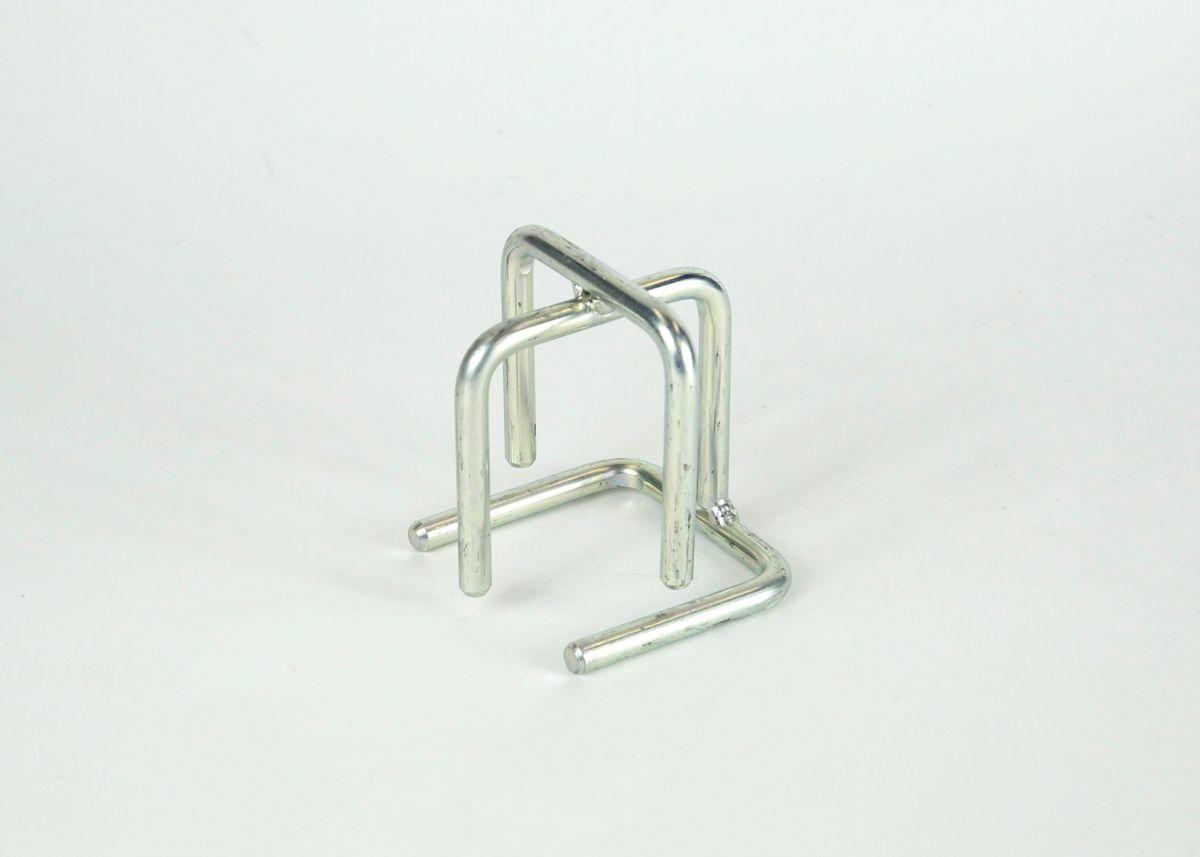

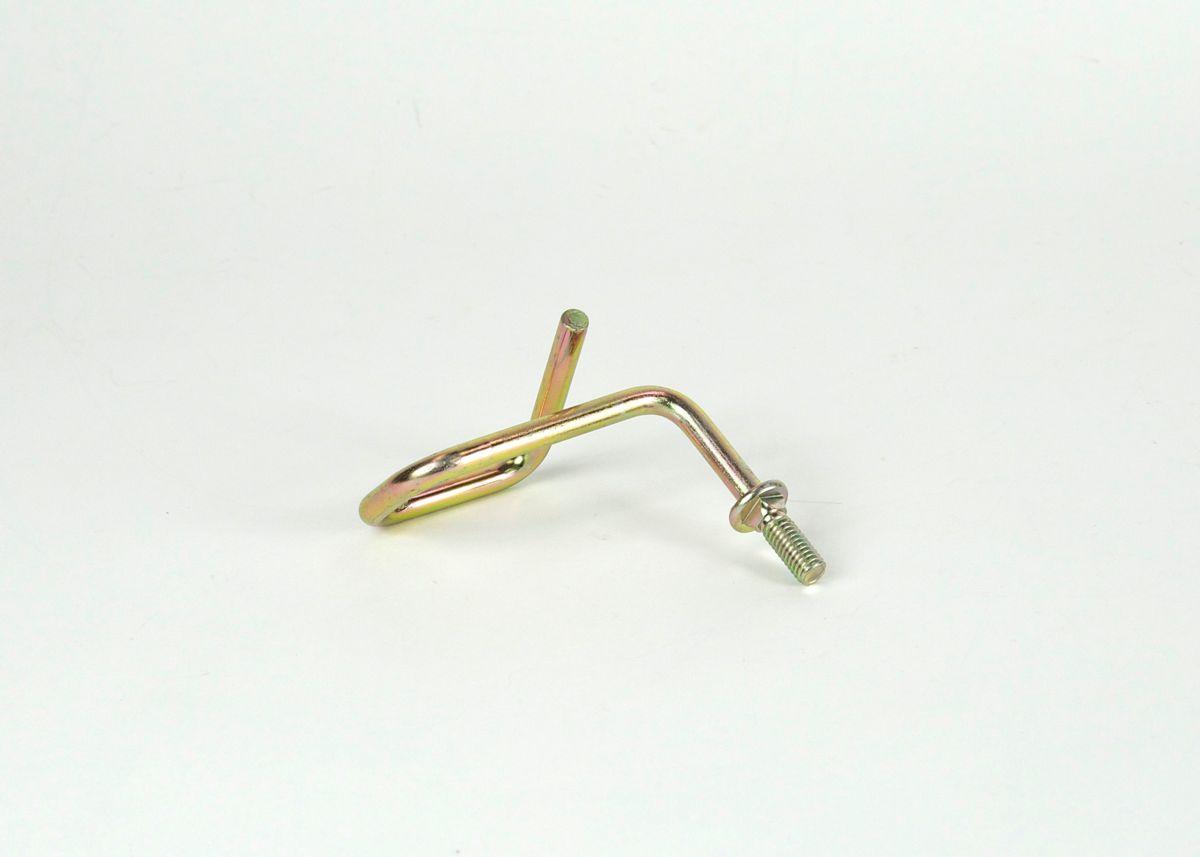

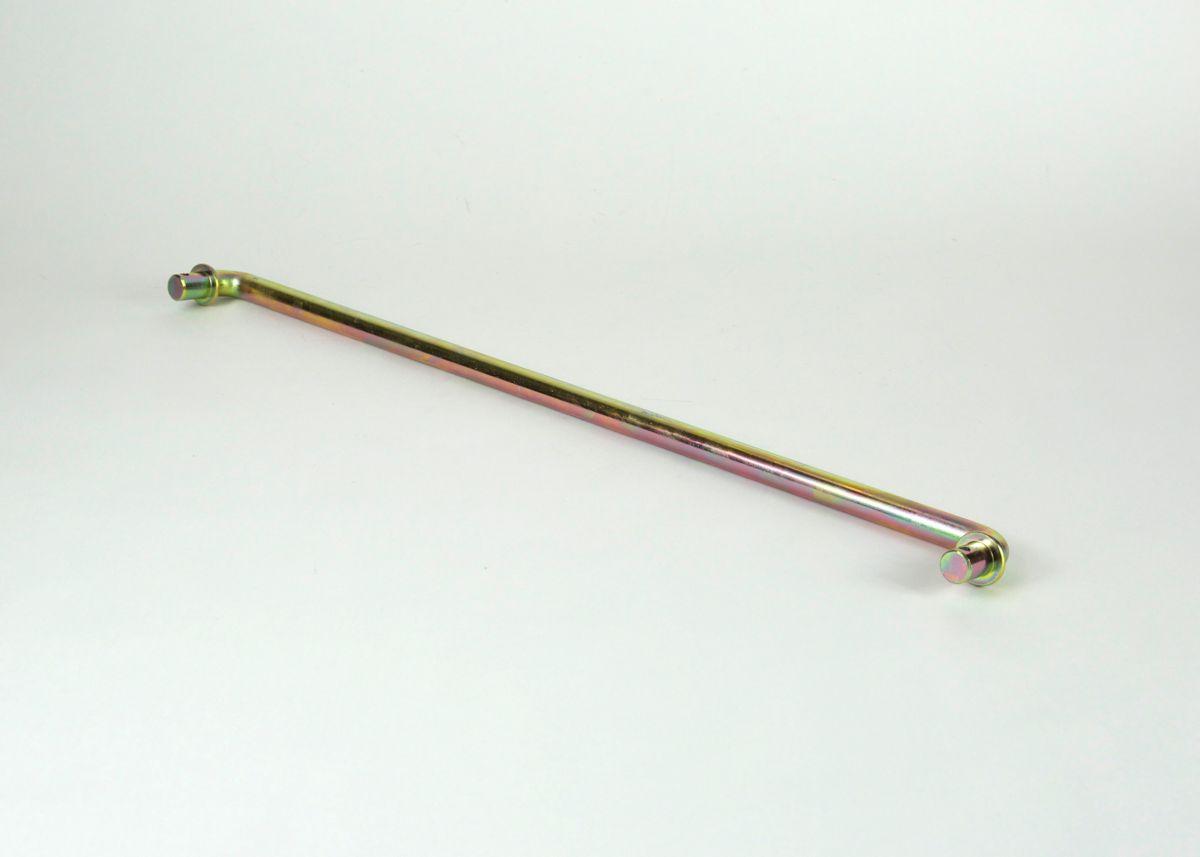

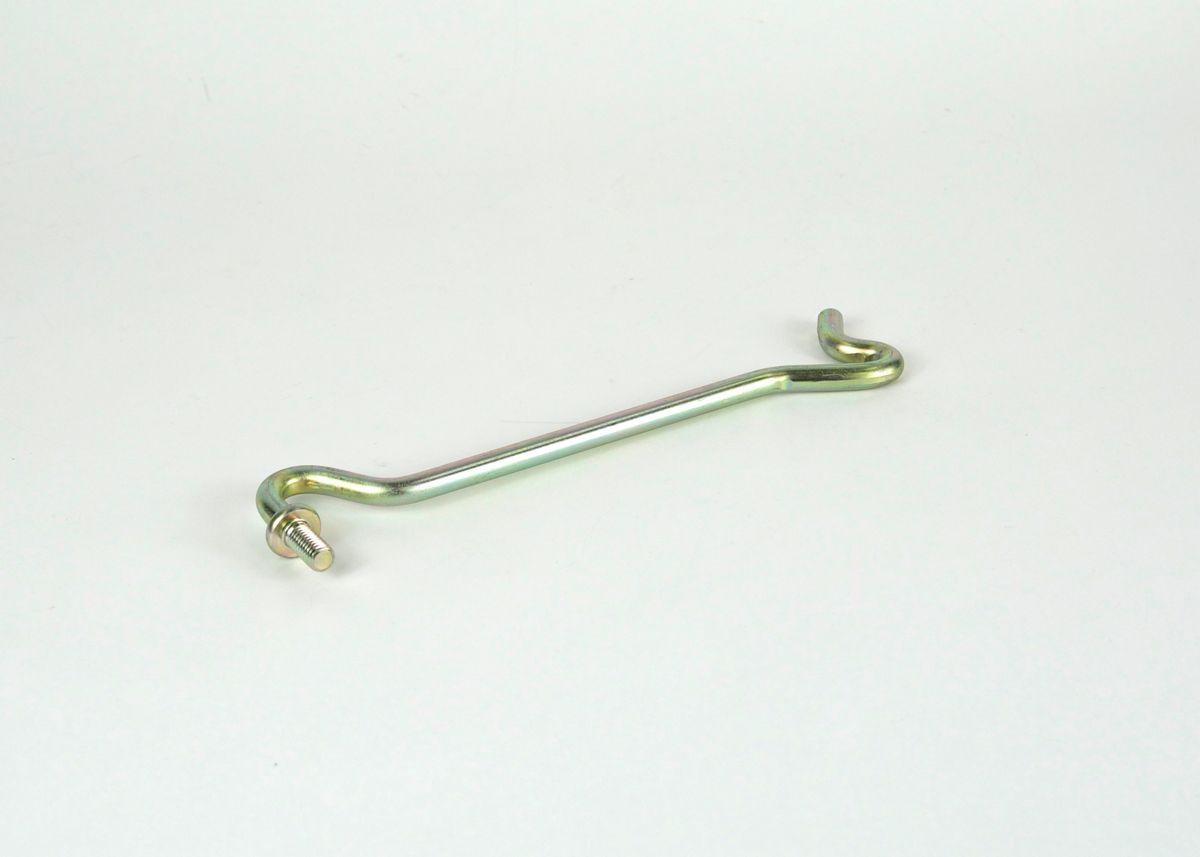

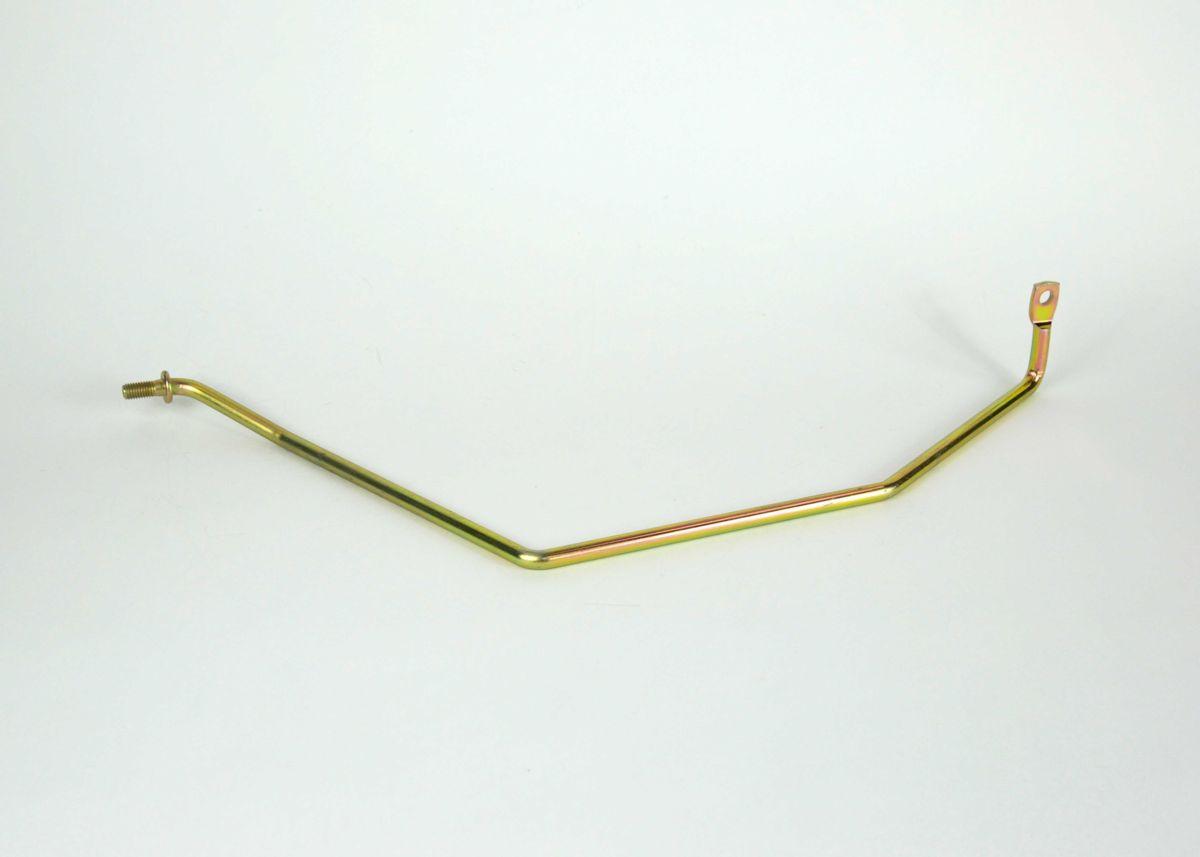

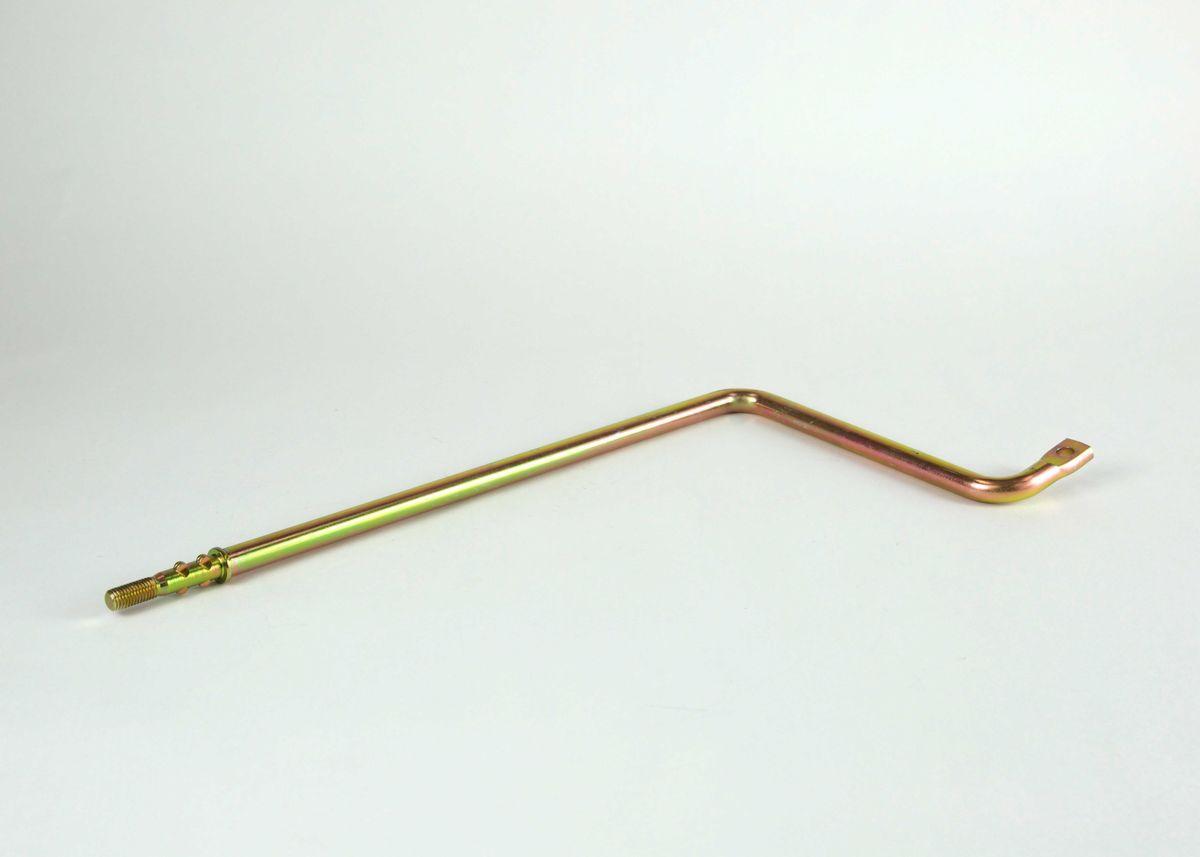

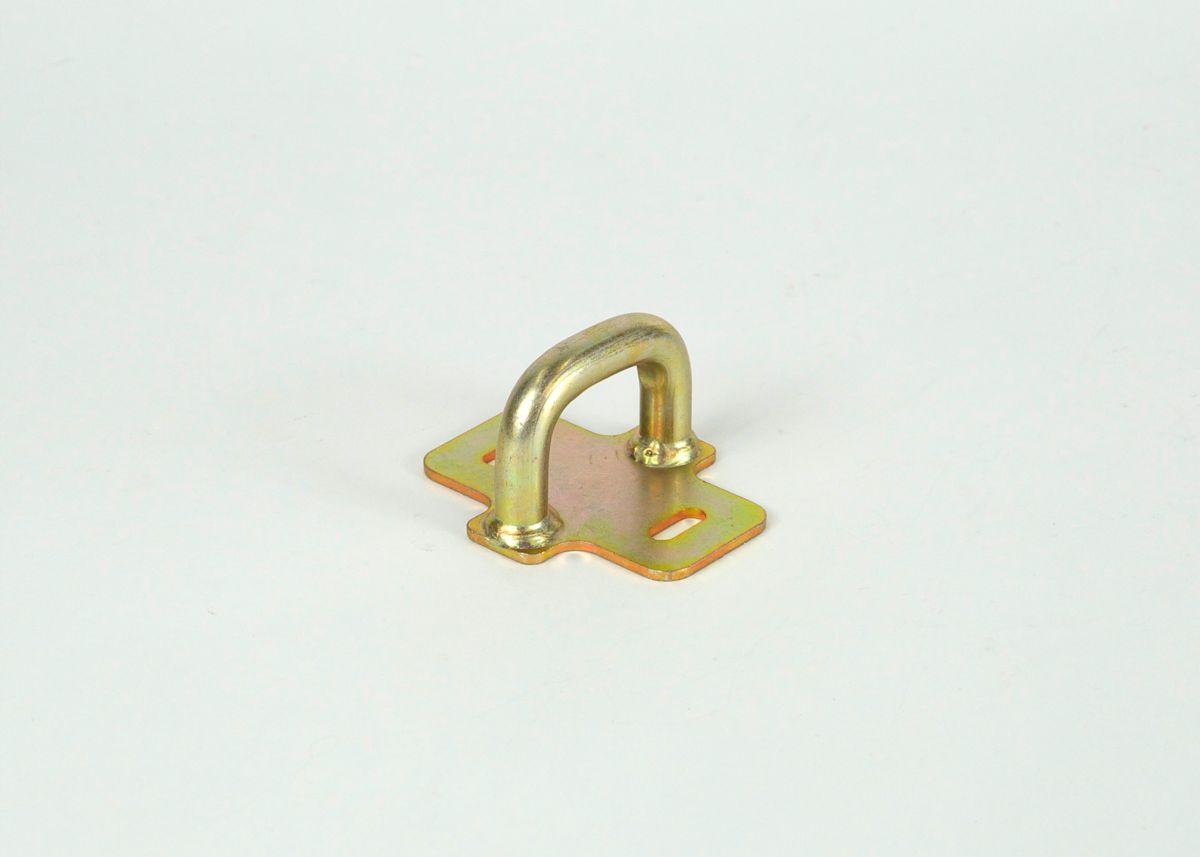

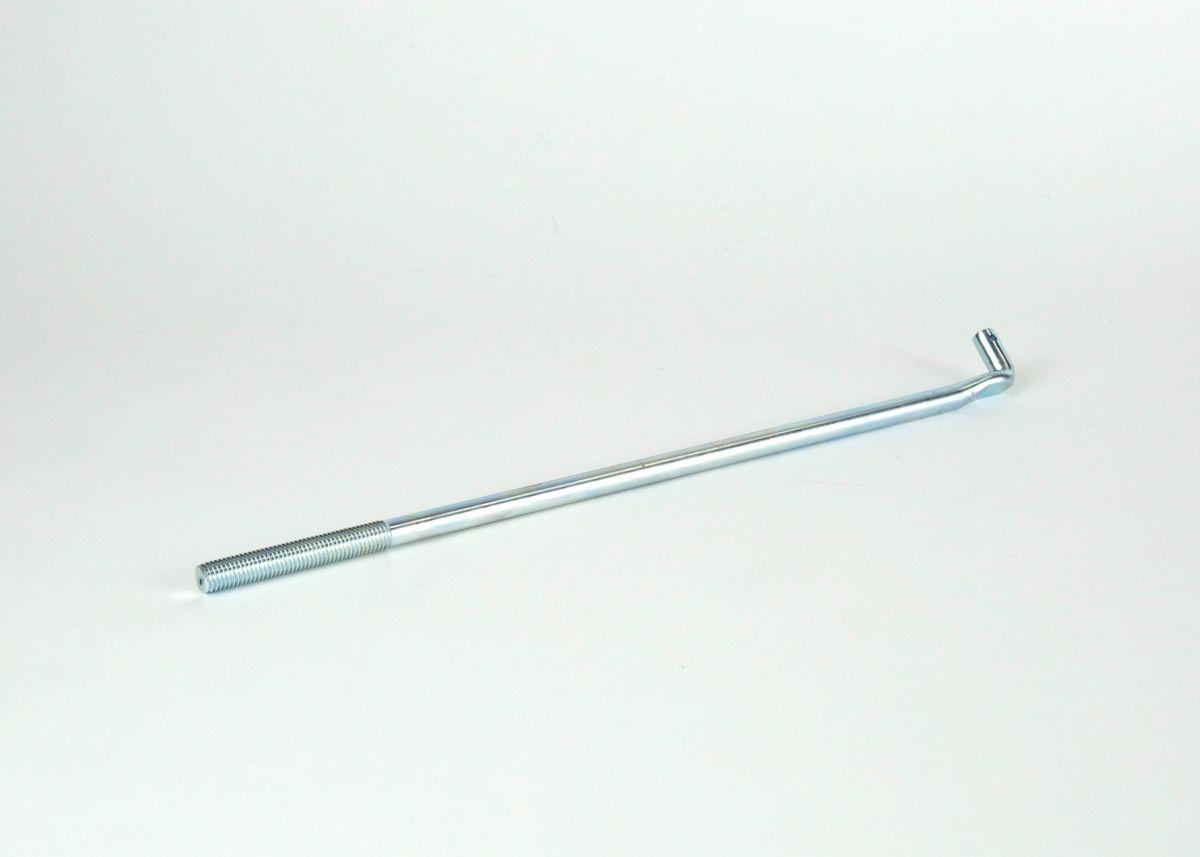

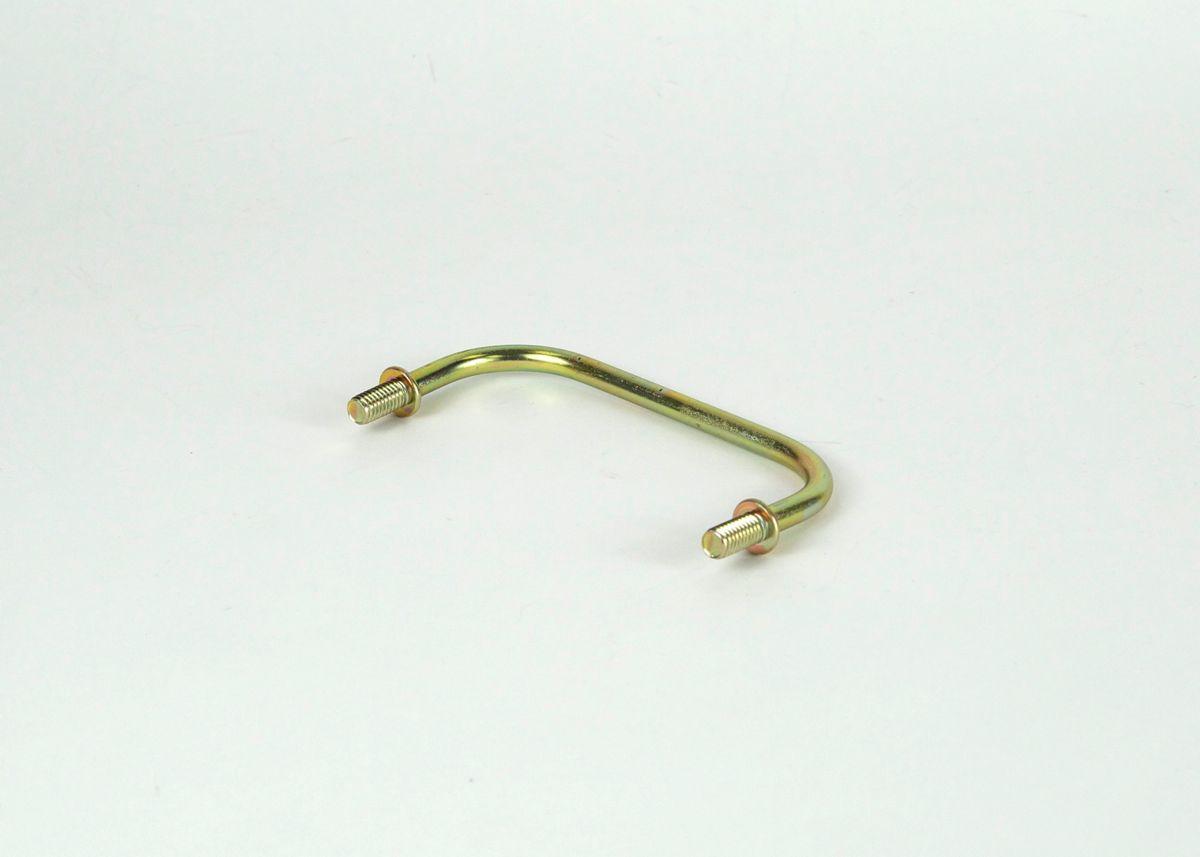

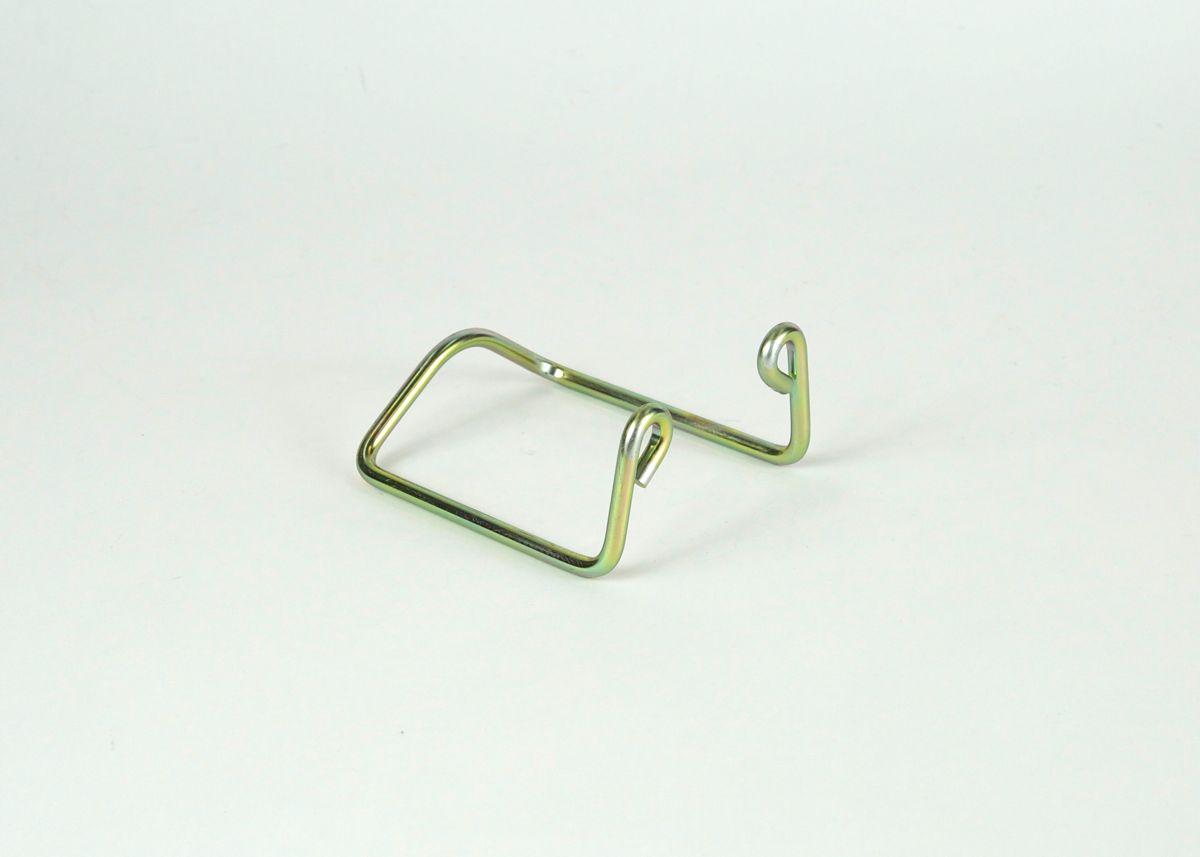

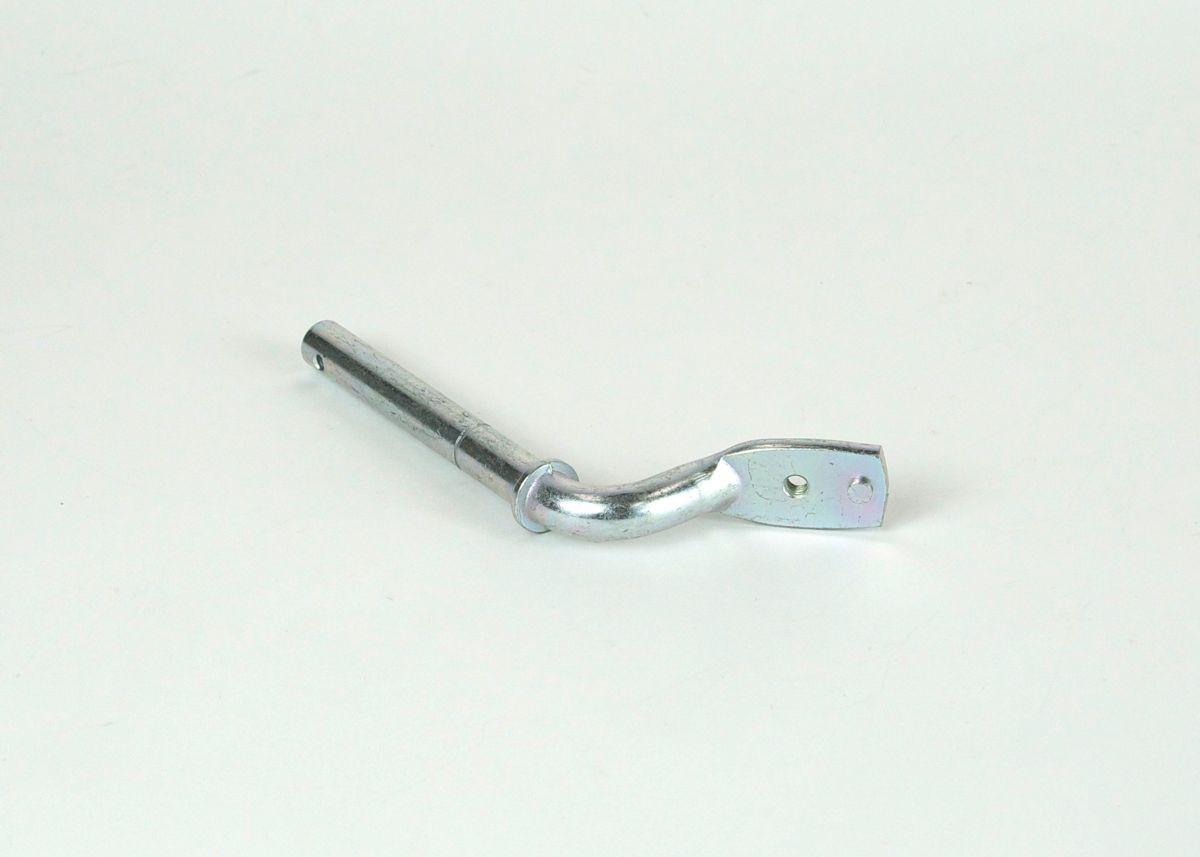

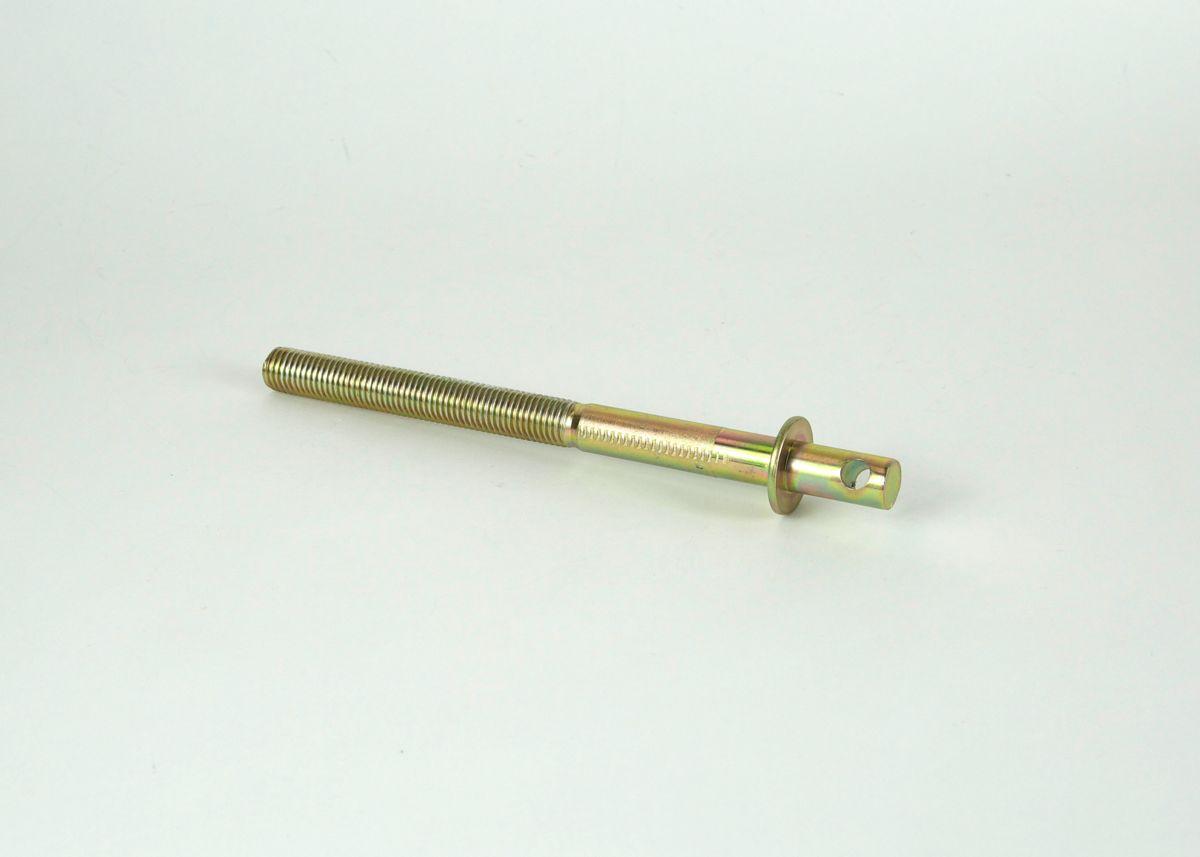

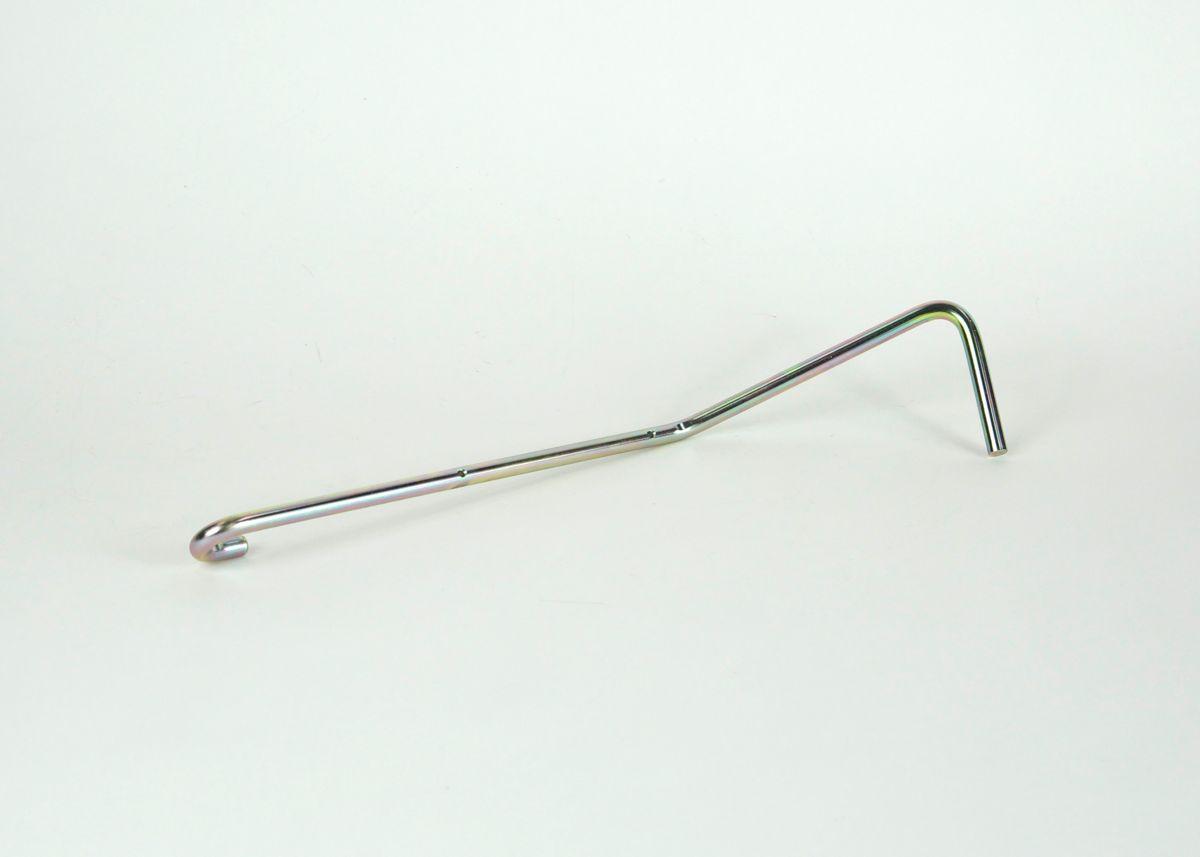

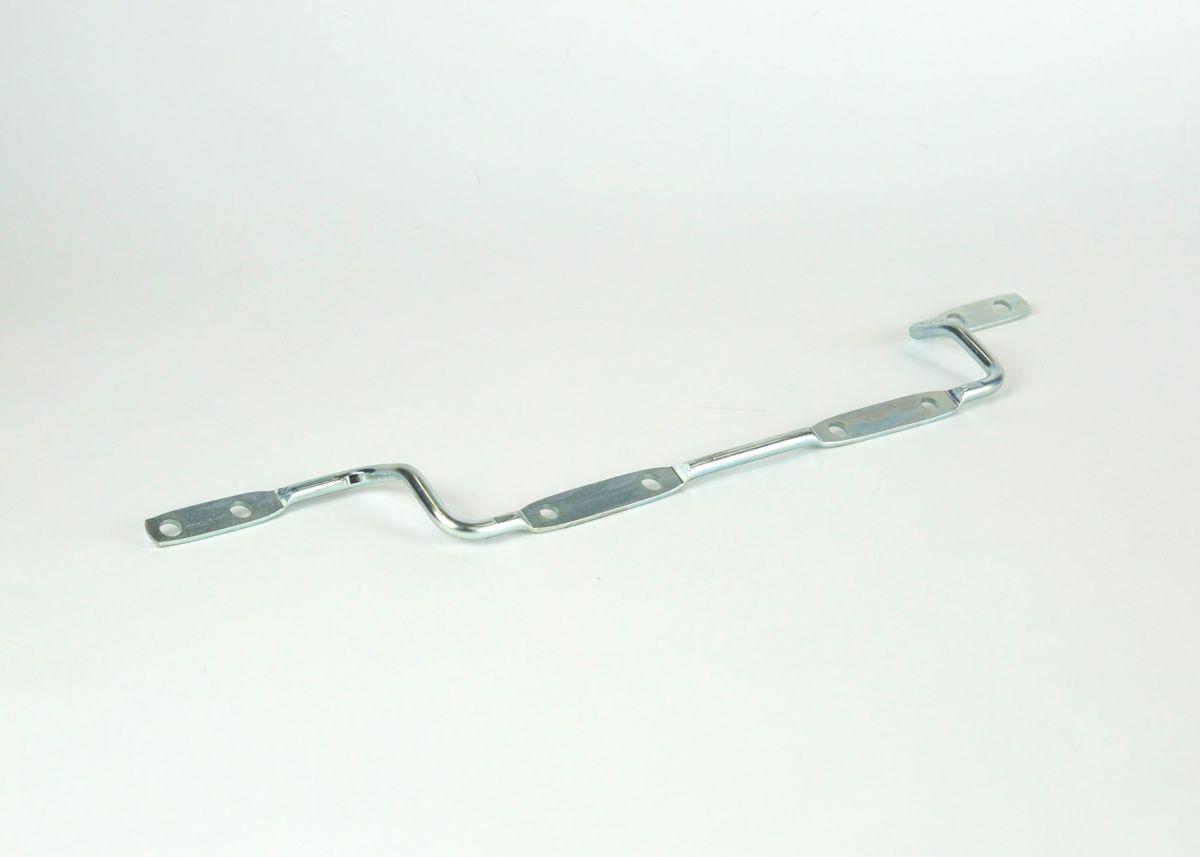

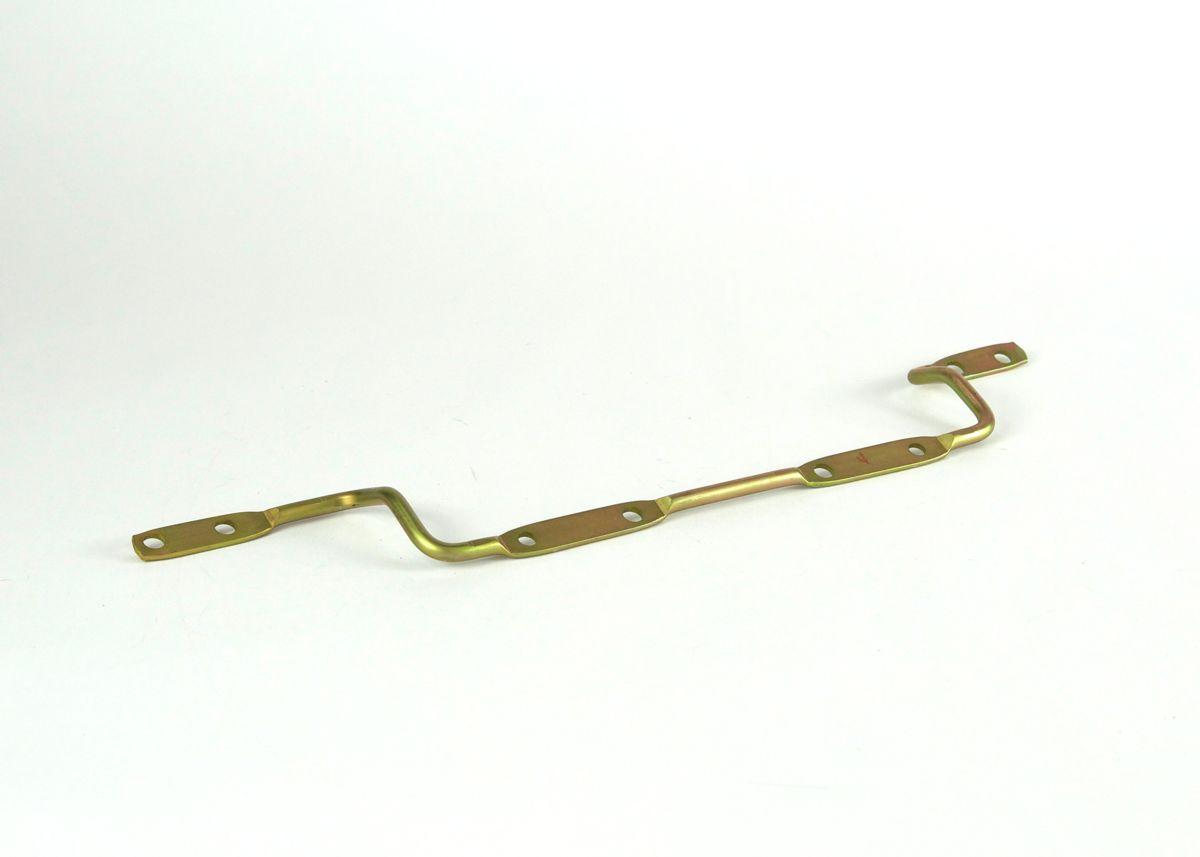

  • See more of our wire forming capabilities and resources below and enjoy the pictures showcasing our wire forming capabilities.

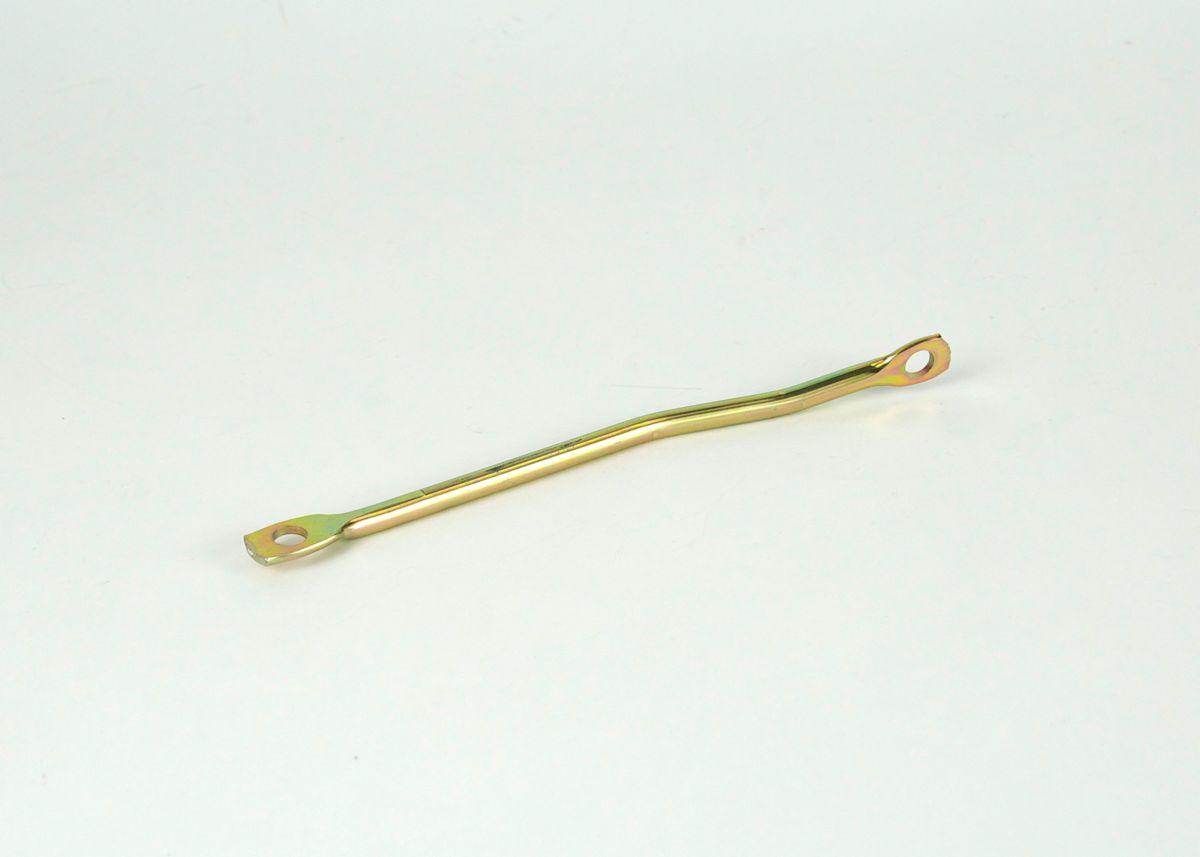

  • Wireforming

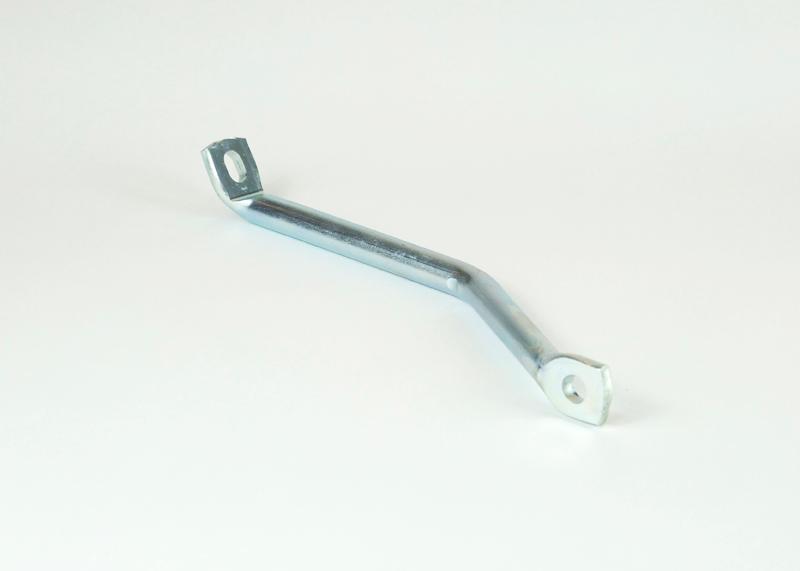

  • Wireforming

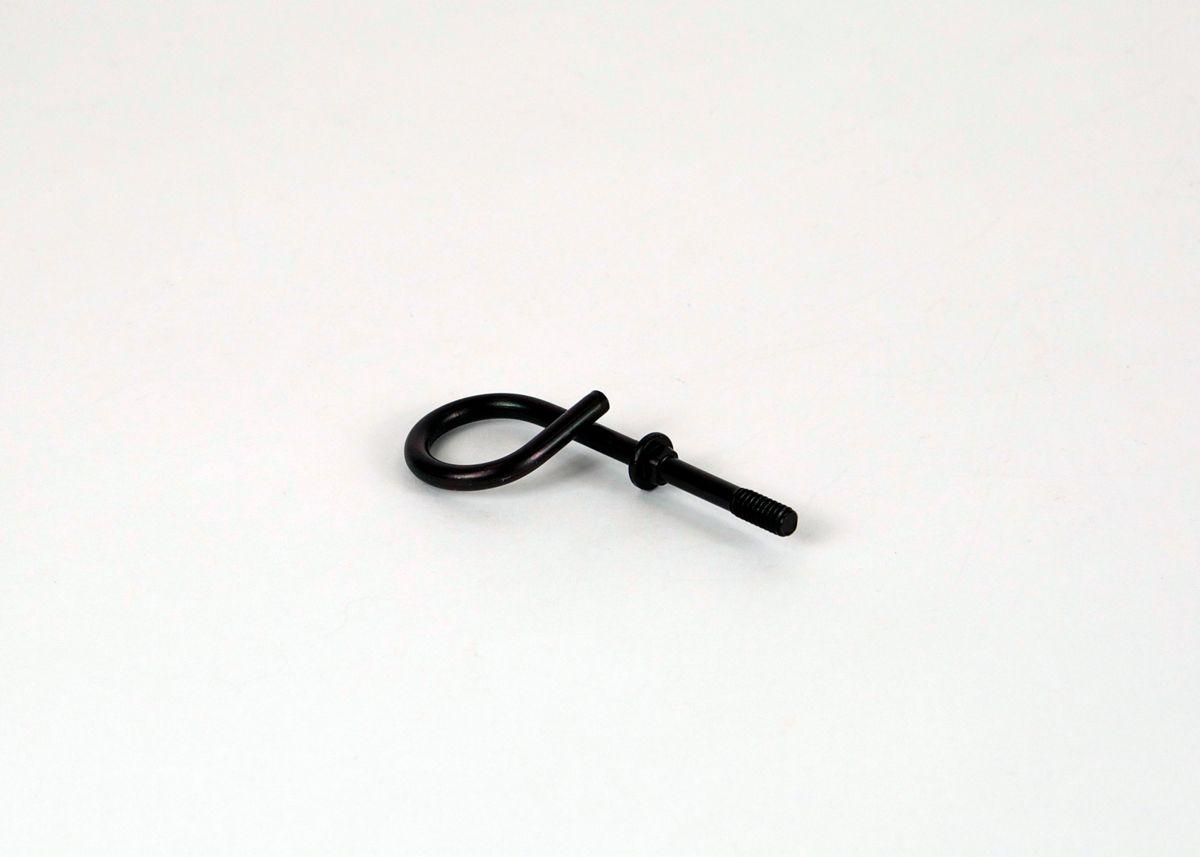

  • Wireforming

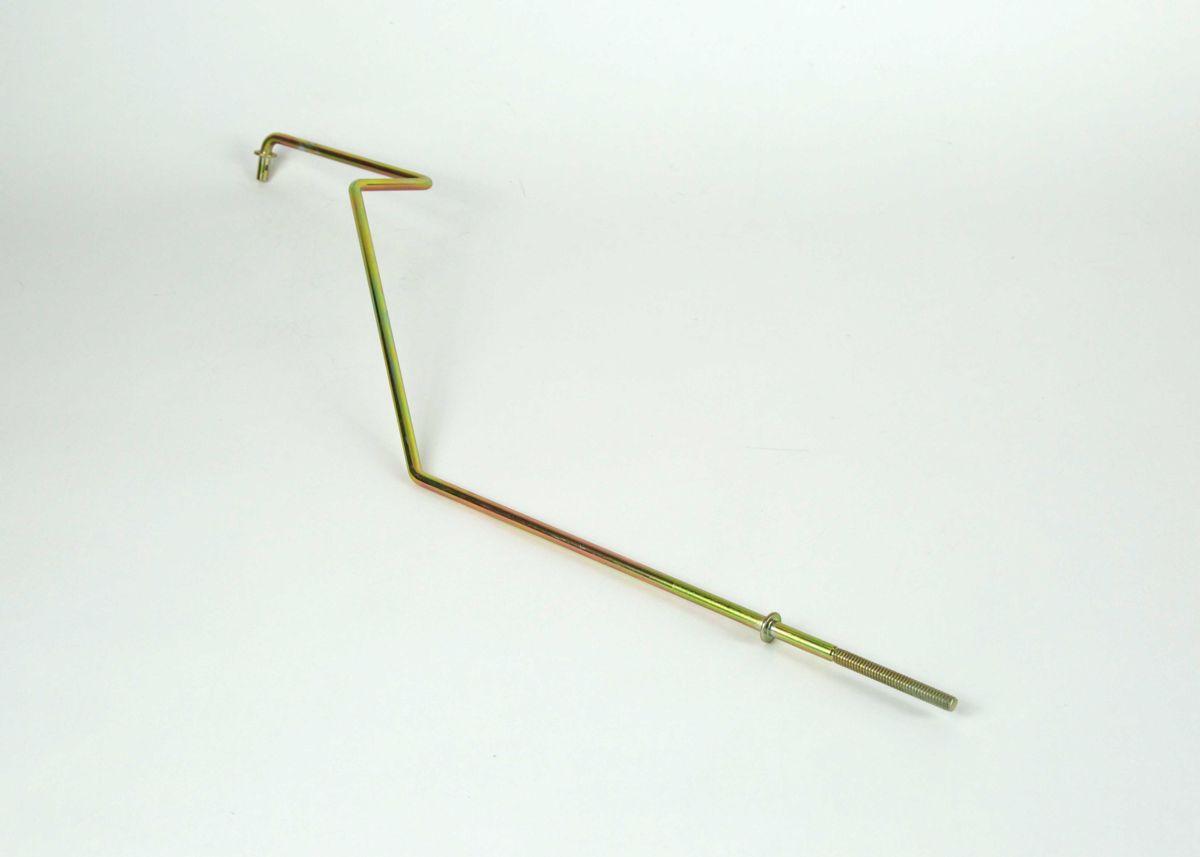

  • Wireforming

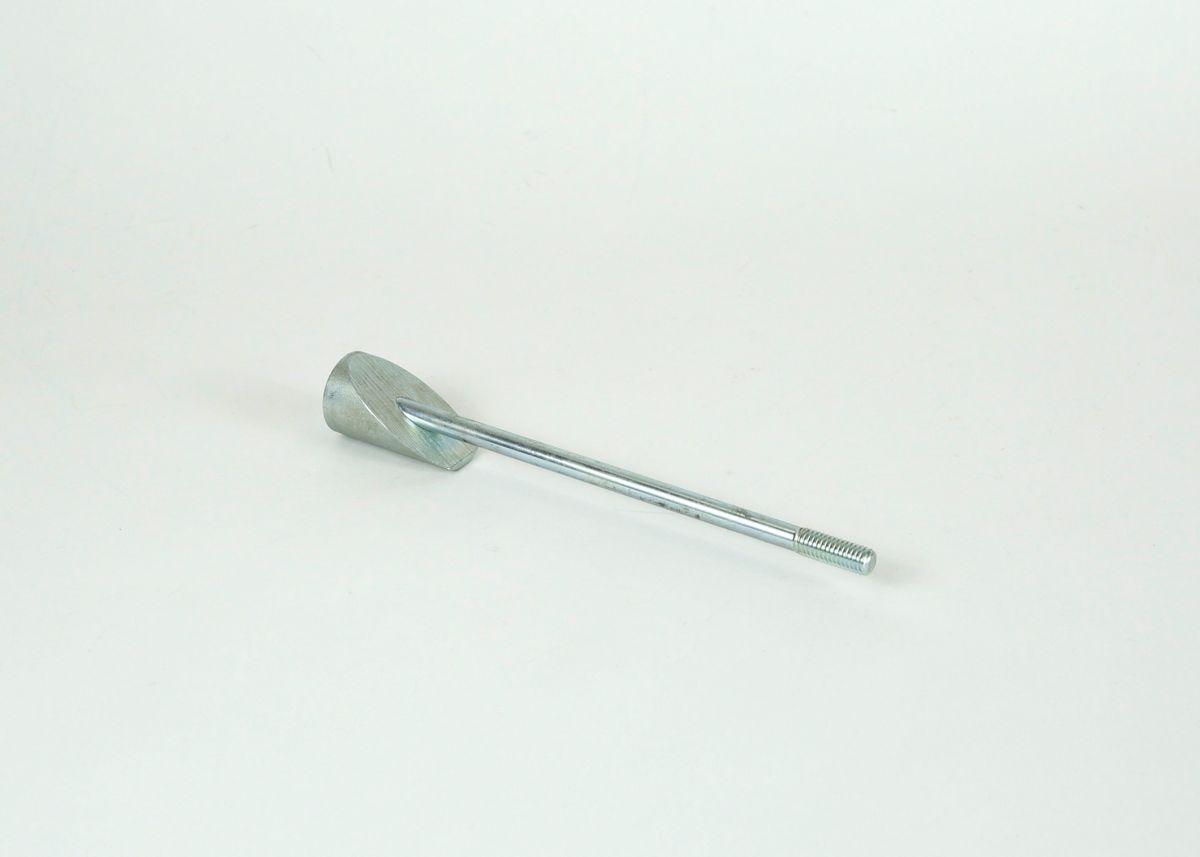

  • Wireforming
  • Wireforming
  • Wireforming
  • Wireforming
  • Wireforming
  • Wireforming
  • Wireforming
  • Wireforming
  • Wireforming
  • Wireforming
  • Wireforming
  • Wireforming
  • Wireforming
  • Wireforming
  • Wireforming
  • Wireforming

Capabilities

ProcessCapability Range
Cold Heading.093 - .750 Diameter
Press Forming:.072 - 1.00 Diameter
CNC Bending:.120 - .625 Diameter
Threading:4-40 to 3/4-16, all metric sizes
Drilling & Tapping:All standard sizes, custom available
Welded Guards:Concentric & spiral, all sizes
Detailed Tolerance Information:

Resource List

EquipmentDescription
CNC Auto Benders
  • (2) Latour .062 - .375 diameter wire
  • (1) Latour .125 / .500 diameter wire
  • (1) Latour .375 / .629 diameter wire
  • (1) AIM .120 / .460 diameter wire with inline ATH unit to chamfer, turn and thread single ended formed parts with a maximum thread length of 4".
AirBenders

(8) Air Benders .058" / .625" diameter wire

Hand Benders(6) Hand Benders .062" / .500" diameter wire
Straightners(6) Straightners .062" / .750" diameter wire
Threaders

(4) Threaders

Cleveland - .185" / .750" diameter wire rolled or cut threads

Horizontal Threader .112" / .462" diameter wire

Horizontal Threader .095 / .462" diameter wire

Vertical Threader .250" / .702" diameter wire

Upsetter (Cold Heading)

(1) Amba Upsetter .185" / .312" diameter wire (hopper fed)

(1) Waterbury Upsetter up to .625" diameter wire

(1) Upsetter .185" / .500" diameter wire (hand fed)

Turners

(1) Turner .185" / .750" diameter wire

(1) Wafio double end chamfer unit, .185" / .500" diameter wire with part length of 3" to 28"

Drills

(8) single head production drill presses

(4) double head prodcution drill presses
