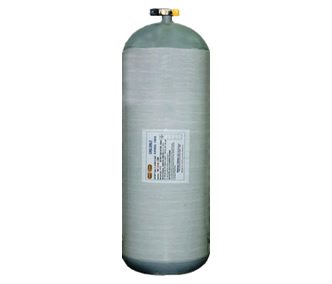

TYPE 2 CNG Steel-Tube 250 Bar Working Pressure
Standard-DOT/ANSI/FMVSS 304/NGV2-2007
One Call for All Your CNG Tank and Component Needs!
Type 2 CNG cylinders deliver the highest impact strength in the class of fiber reinforced cylinders. This new breakthrough option for commercial CNG’s users is the result of innovative production technology, where lightweight steel liners are wrapped with a proprietary very high strength steel wire, sealed with a special epoxy and covered with a protective mesh.
Innovative - Our type 2 cylinders use innovative technologies that produce lightweight steel liners wrapped with a proprietary high strength steel wire, sealed with a special epoxy and covered with a thin protective mesh.
Certified - Our type 2 cylinders are the first realistic commercial alternative to expensive Type 4 tanks.
Affordable - Our type 2 cylinders are the first realistic commercial alternative to expensive Type 4 tanks.
All tanks certified to DOT/ANSI FMVSS 304/ NGV2-2007. 3600 PSI.
| Capacity Liters | GGE | OD Inches | Length Inches | Weight Lbs | Weight Ratio (Lbs/Ltr) |
|---|---|---|---|---|---|
| 95 | 8.3 | 12.90 | 56.30 | 176.0 | 1.85 |
| 57 | 4.9 | 14.30 | 31.00 | 132.0 | 2.32 |
| 80 | 6.9 | 16.30 | 32.50 | 148.0 | 1.85 |
| 100 | 8.6 | 16.30 | 40.00 | 181.0 | 1.81 |
| 122 | 10.5 | 16.30 | 48.00 | 225.0 | 1.80 |
| 147 | 13.0 | 16.30 | 55.00 | 262.0 | 1.74 |
| 154 | 13.3 | 16.20 | 59.00 | 285.0 | 1.85 |
| 200 | 17.2 | 16.30 | 74.50 | 370.0 | 1.85 |
| 194 | 16.7 | 18.30 | 60.00 | 367.0 | 1.89 |
| 260 | 17.3 | 18.30 | 74.50 | 492.0 | 1.89 |
| Valves | |||
|---|---|---|---|
| Manufacturer | Type | Part # | Description |
| ROTAREX | Solenoid | C35021028 | 1 1/8-12 Inlet 9/16-19 outlet |
| ROTAREX | Manual | C35021128 | 1 1/8-12 Inlet 9/16-19 outlet |
| SHERWOOD | Manual | DFA1555-55HFKP | 1 1/8-12 Inlet 9/16-19 outlet |
| Emer | Solenoid | F6AU-9D278-ABE | 3/4 14 NGT 1/4 OUTLET |
| Brackets |
|---|
| Brackets for all sizes available for both neck and strap mounted |
